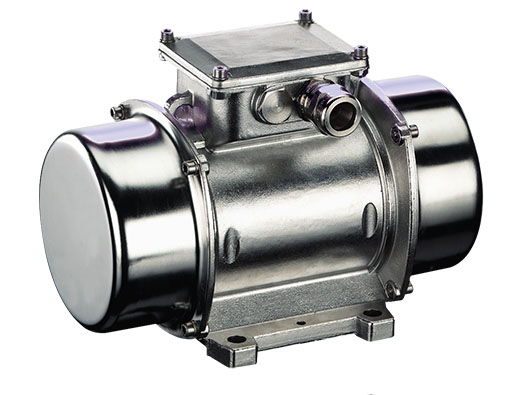

Italvibras MVSS electric vibrators are characterized by their total protection from liquids, dusts, aggressive agents and contaminants, thanks to the stainless steel casing and external components.

Power supply
Three-phase voltage from 24V to 690V, 50Hz or 60Hz or single−phase 100-130V 60Hz and 200-240V, 50Hz; suitable for use with a PWM frequency drive from 20Hz to the base frequency with constant torque load profile.
Polarity
2, 4, 6 and 8 poles

Italvibras MVSS electric vibrators

Functioning
Continual service (S1) at maximum declared centrifugal force and electric power.
Centrifugal force
Range extended up to 4300 Kgf. (42.4 KN)
Insulation class
Class F (155°C), class H (180°C) on request.
Electric motor
Three-phase and single−phase asynchronous type. Insulated windings using vacuum encapsulating up to size 35; using the “drop by drop” trickle system with class H resin for larger sizes. The rotor is die cast aluminum.
