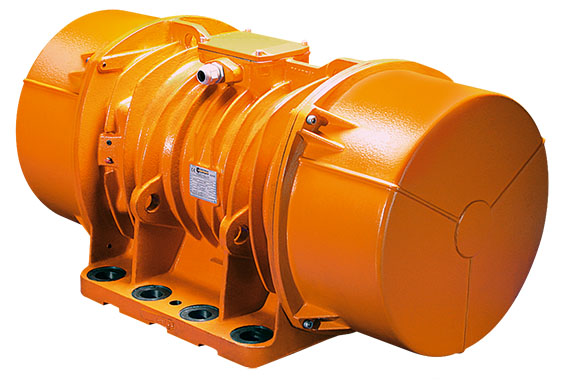

Italvibras MVSI-E electric vibrators have been designed for use in industrial processes in environments with a potentially explosive atmosphere, due to the presence of explosive gas and dust, in compliance with ATEX Directive (94/9/EC).
In particular, the MVSI-E series can be used in areas 1 and 2 (gas) and in areas 21 and 22 (dusts).
Power supply
Three-phase voltage from 220V to 690V, 50Hz or 60Hz; suitable for use with a PWM frequency drive from 20Hz to the base frequency with constant torque load profile.
Polarity
2, 4, 6 and 8 poles.
Italvibras MVSI-E electric vibrators
Functioning
Continual service (S1) at maximum declared centrifugal force and electric power.
Centrifugal force
Range extended up to 11160 Kgf. (109 KN)
Insulation class
Class F (155°C).
Electric motor
Three-phase asynchronous type. Insulated windings using vacuum encapsulating up to size 35; using the “drop by drop” trickle system with class H resin for larger sizes. The rotor is die cast aluminum.
