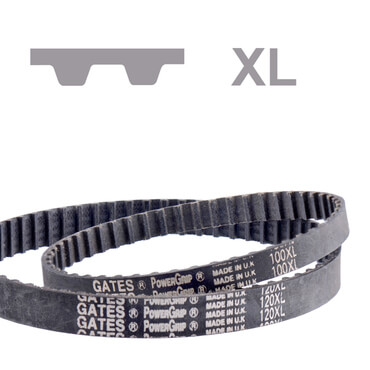

Gates PowerGrip XL belts

Gates PowerGrip XL offers a maintenance-free and economical alternative to conventional drives like chains and gears. Its application range extends from minimum drives (computer printers) to heavy-duty machinery (oil pumps, etc).

Identification
Three part number on the back of the belt indicating belt length, pitch and width.

Construction
• Trapezoidal tooth form.
• Precisely formed and accurately spaced elastomeric teeth ensure correct engagement in the pulley grooves.
• Fibreglass tensile cords.
• Tough nylon facing protects the tooth surfaces.
• Available in standard pitches according to ISO 5296: MXL, XL, L, H, XH and XXH.
• For MXL sizes and description,see pages 96.

Advantages
• Power transmission of up to 150kW and speeds of up to 10,000 rpm.
• Peripheral speed up to 80 m/s.
• Positive slip-proof engagement.
• Constant angular velocity.
• Efficiencies up to 99%.
• Maintenance-free continuity of operation.
• Wide range of load capacities and speed ratios.
• Compact design.
• Economical operation.
