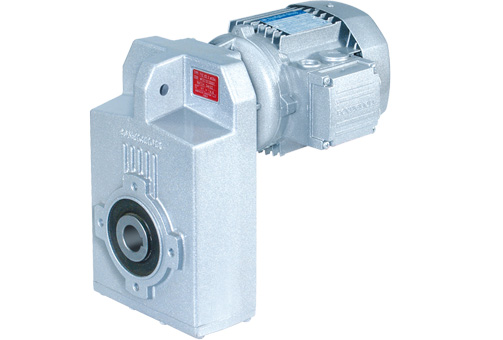

Ruggedness and effectiveness to the state-of-the-art. No better, easier and neater installation than with a Bonfiglioli shaft mounted gear motors of the F series. Lightweight and performing, an F unit is the dependable drive for all the material handling applications.
Torque Range
140 Nm… 14.000 Nm
Mechanical Rating (n1= 1400 min-1)
0,17 … 125 kW
Gear ratios
6,4 … 2099
Output Configuration
Keyed Hollow Shaft — Two Bore Options per Size
Keyless Shrink Disc Fitting
Plug-in Solid Output Shafts as an Option
Bonfiglioli shaft mounted gear motors
Input Configurations
IEC-normalized Motor Adaptors
Solid Input Shaft
Applicable AC motors
Integral motors and Brake motors — M series/ME series
IEC-normalized Motors and Brake motors — BN series/BE series
Single and Dual Speed Motors
Main Brake Features
DC and AC supply
Faster Brake Engage/Disengage through Electonically
Controlled AC/DC Rectifier type SB, NBR, SBR (options)
Main Motor Options
Thermistors and Thermostates sensor
Separate Supply Forced Ventilation
Line Driver and Push-Pull Incremental Encoder
