Bonfiglioli premium efficiency IE3 motors are the range of AC motors with the highest efficiency class IE3. The IEC-normalized BX motors comply with IEC 60034- 30:2008 (efficiency classes) and all the applicable international standards, including the EMC and LV Directives. They are available in the 0,75 — 22 kW range in the foot and the flange mounting version. All motors are inverter duty.
Power Range (4 pole)
5,5 kW … 22 kW
Frame Sizes
132SB … 180L
Pole Numbers
4
Mounting Options
Foot IM B3
Flange IM B5 and IM B14

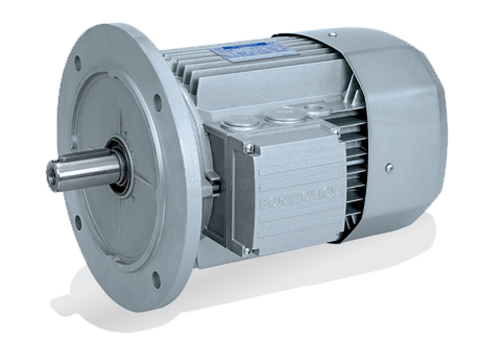

Bonfiglioli premium efficiency IE3 motors
Operation
50 Hz
Compliance
IEC 60034-30:2008 (IE),
2006/95/EC (LVD) and 2004/108/EC (EMC)
Inverter Duty
All frame sizes
Housing
Cast aluminium
Main Options
Thermistors and thermostat sensors
Separate supply forced ventilation
Line driver and push-pull incremental encoder
CSA and UL approved design
